The only 2-person hybrid sauna engineered for full-spectrum infrared, authentic steam, and red light therapy — all on a 120V plug. The FD-4 combines medical-grade near-infrared, a Harvia Finnish steam stove, and antimicrobial cedar in a compact, easy-to-install design.
Features
- Heats to 170°F (infrared) or 190°F (steam) – dual heat flexibility
- Dual infrared system: Carbon 360° far-IR + UL-listed Spectrum Plus™ near-IR
- Harvia Vega Compact 1.9 kW traditional heater with steam stones (included)

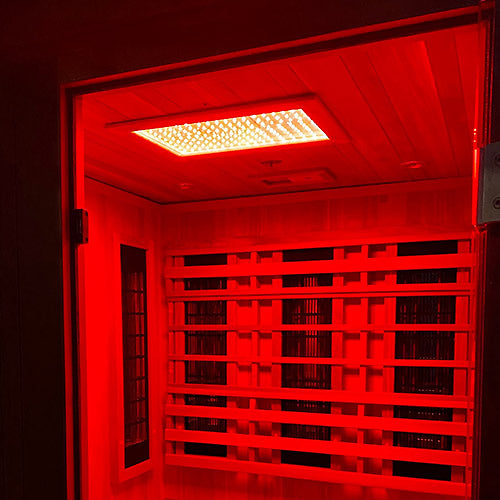

- Built-in 650nm red light therapy – supports skin, circulation, recovery

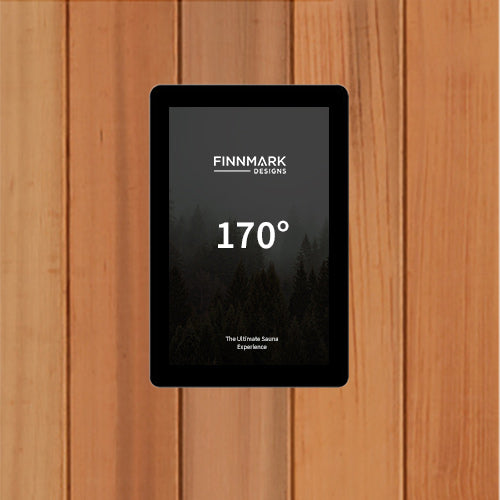

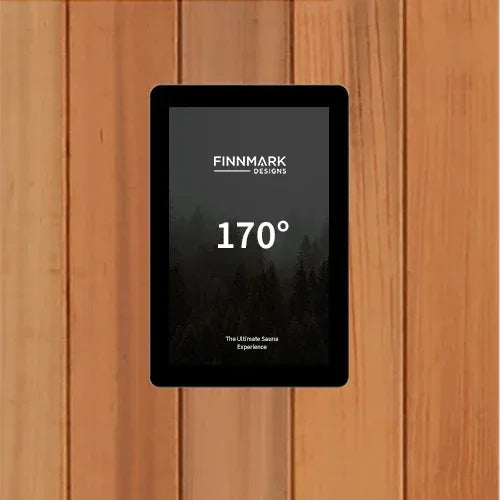

- Digital touchscreen control with WiFi remote app access
- Bluetooth audio with premium 6" built-in speakers
- Constructed from antimicrobial Western Red Cedar (interior) and rot-proof Thermal Plus™ Aspen (exterior)
- ETL safety certified with ultra-low EMF heaters
- Assembles in under 60 minutes – no special tools or installers required
Specifications
| Category | Detail |
|---|---|
| Capacity | 2 person |
| Exterior Dimensions | 48″ W x 48″ D x 83″ H |
| Interior Dimensions | 45.2″ W x 44.5″ D x 75.5″ H |
| Volume | 86 cu. ft. |
| Weight | 437 lbs (Shipping: 485 lbs) |
| Wood Type | Interior: Western Red Cedar; Exterior: Thermal Plus™ Aspen |
| Glass | 8mm tempered glass door |
| Heating System | Full-spectrum: Carbon far-IR + Spectrum Plus™ near-IR + Harvia steam stove |
| Infrared Output | 1.7 kW |
| Steam Output | 1.9 kW (Harvia Vega Compact) |
| Max Temperature | 170°F (IR), 190°F (Steam) |
| Red Light Therapy | Integrated ceiling-mounted 650nm LED array |
| Control Panel | Touchscreen digital panel w/ WiFi app control |
| Lighting | Chromotherapy LEDs |
| Audio | Bluetooth receiver, dual 6” built-in speakers |
| Electrical Setup | 120V / 15A standard household circuit; NEMA 5-15 plug; no hardwiring required; outlet must be dedicated |
Construction & Materials
The FD-4 features a double-walled cabin lined with Grade-A Western Red Cedar — naturally antimicrobial and aromatic — and a Thermal Plus™ Aspen exterior that will never rot, warp, or decay. The walls are insulated for maximum heat retention and energy efficiency. Its 8mm tempered glass door provides durability and a clean aesthetic.
Installation
The FD-4 is designed for indoor use only and fits under standard 8-ft ceilings. It assembles in 30–60 minutes with two people. No tools or professional installation required — the panels lock together via pre-fitted hardware, and the wiring is plug-and-play. It sits on any flat indoor surface including tile, wood, or carpet. Adjustable leveling feet are included.
Operation & Usage
Once plugged into a standard 120V / 15A outlet, use the touchscreen or app to power on the infrared system (up to 170°F), set your session time (up to 60 minutes), and control lighting and audio. Activate the Harvia stove separately via built-in controls to reach up to 190°F. Add water to the included sauna stones for true Finnish-style steam. Use infrared, steam, or both. No plumbing required.
EMF & Safety
- The FD-4 is built with safety at its core:
- Ultra-low EMF output, third-party tested
- ETL certified to UL/CSA electrical safety standards
- Built-in overheat protection and session timer
Zero off-gassing materials or adhesives
Ideal for daily use in residential settings.
