The HUUM Thru Wall Chimney Set is designed to route your sauna wood stove chimney through the wall and rise vertically outside. Built from stainless steel, this premium kit includes the core components needed for a clean, safe chimney run when paired with HUUM sauna stoves.

Features

• Through the wall chimney routing



• Mounts in a vertical position



• Works well with smaller spaces



• Constructed of stainless steel



• Compatible with all sauna stoves by HUUM



• Designed, engineered, and made in Estonia

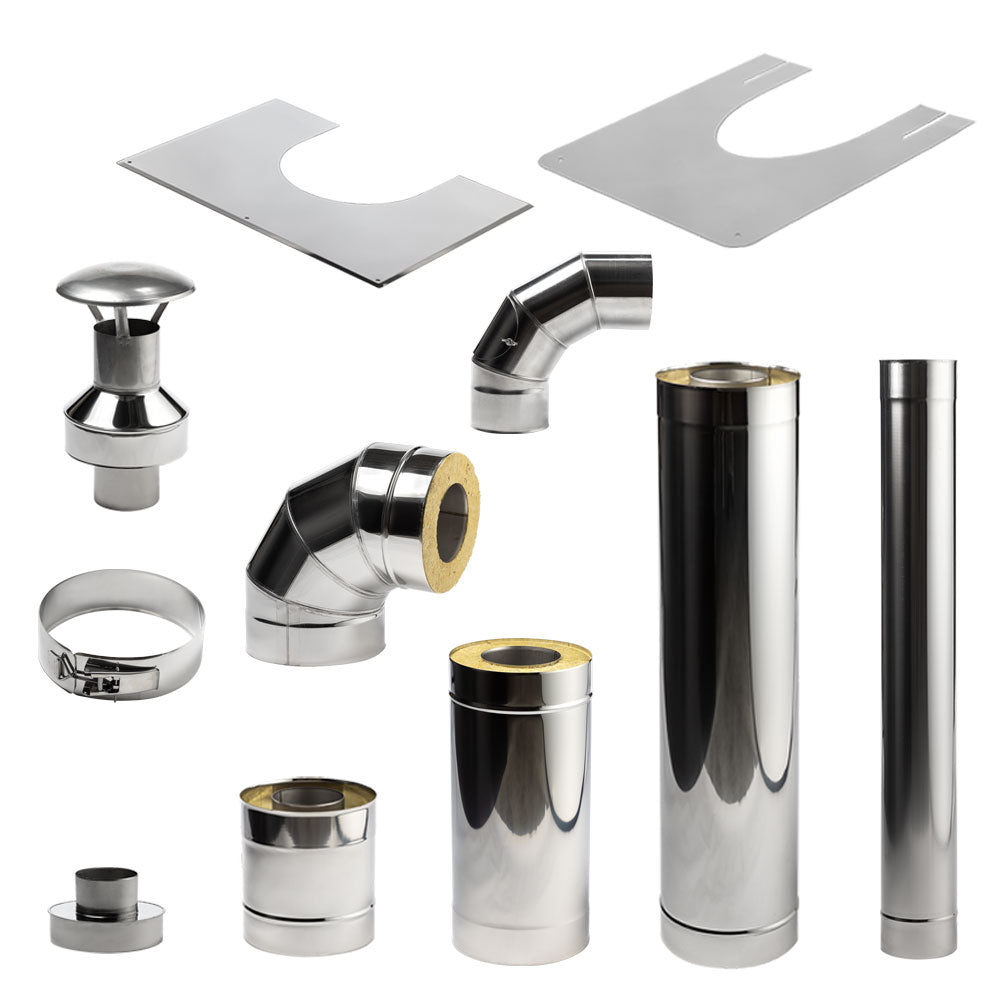

Includes

• Single Wall Pipe (2)



• Chimney Base



• Single Wall Elbow with Cleaning Hatch



• Double Wall Chimney



• Wall Cover Plates (2 Parts)



• 90 Degree Double Wall Elbow



• Double Wall Pipe



• Chimney Element Bracket



• Chimney Cap

Specifications

Model	THRU WALL CHIMNEY
Construction Material	Stainless Steel
Single Wall Pipe (1) Length	39.37 inches (1000mm)
Single Wall Pipe (2) Length	9.8 inches (250mm)
Double Wall Chimney Length	19.7 inches (500mm)
Double Wall Pipe Length	39.37 inches (1000mm)
Total Length	102.4 inches (2600mm)

Installation and Compatibility

• Made for use with HUUM sauna wood stoves



• Designed for thru wall chimney routing with a vertical rise outside the sauna



• Install per local code requirements and follow required clearances for wood burning appliances
