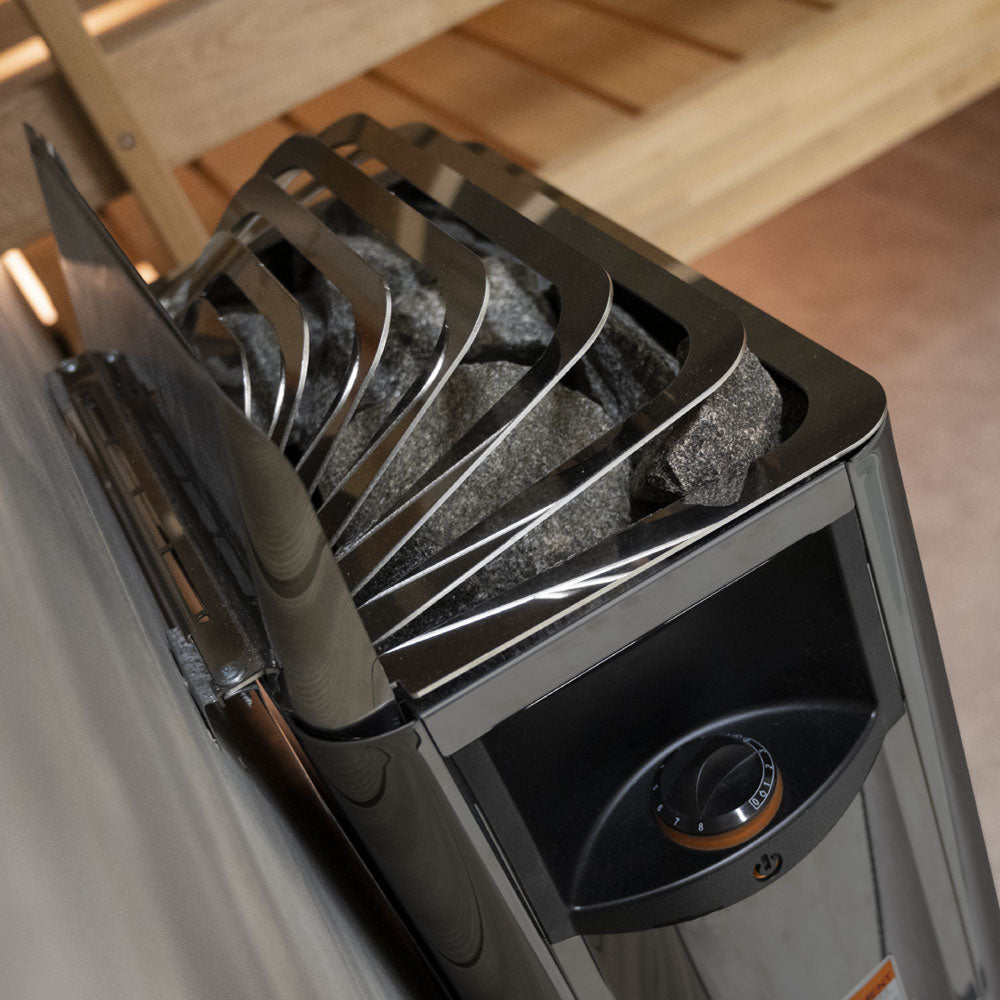

Harvia The Wall SWS80 8kW Stainless Sauna Heater 240V 1PH

The Harvia The Wall SWS80 is an eight kilowatt stainless steel electric sauna heater for medium size home saunas. A slim wall mounted body, clean stainless finish and built in illuminated controls deliver efficient Finnish heat for rooms up to about four hundred twenty three cubic feet while keeping the floor and benches open.

Key Features

• Eight kilowatt electric sauna heater for medium home saunas



• Rated for sauna rooms from about one hundred seventy six to four hundred twenty three cubic feet



• Slim wall mounted design saves floor space and opens up the bench layout



• Stainless steel housing with stainless steel heating elements for strength and a modern look



• Direct rock to element contact for responsive heating and satisfying steam when you sprinkle water



• Requires about forty four pounds of sauna stones usually one box of Harvia AC3000 stones



• Built in illuminated control panel for on off time and temperature settings



• Control panel can be configured on the right or left side to fit your room design



• Preset timer lets you schedule a heat up cycle for up to eight hours in advance



• Smart internal air flow design supports even temperatures and steady heat output



• Built in overheat protection and stone protector for added safety

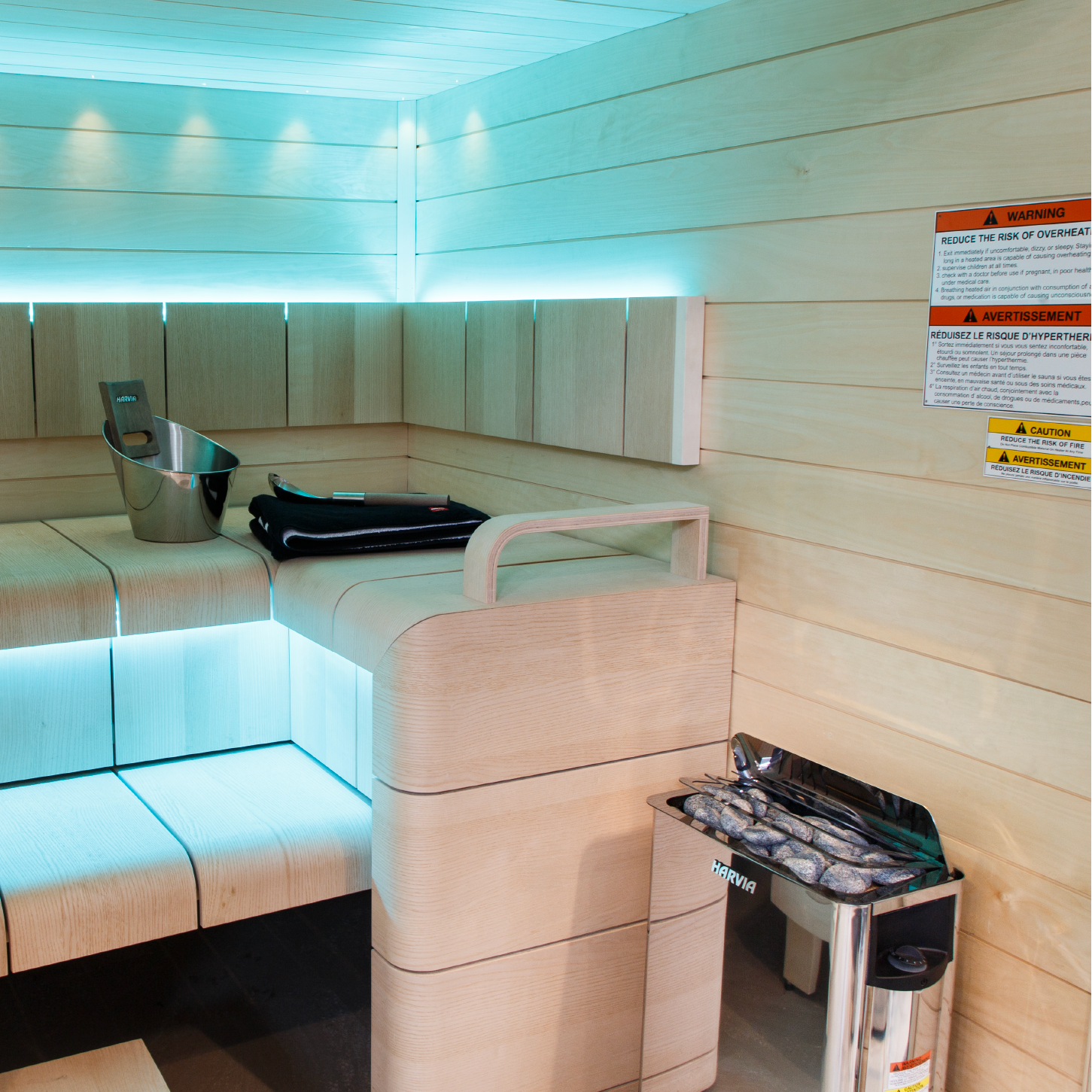

• Option to integrate the heater into a bench surround for a clean built in appearance



• Designed engineered and made in Finland

Specifications

Brand	Harvia
Series	The Wall
Model	SWS80
Part number	HSWS8U1B
Heater type	Wall mounted electric sauna heater
Power output	8.0 kilowatts
Voltage and phase	240 volt single phase
Nominal current	About 25 amps
Recommended breaker	About 40 amp circuit sized by a licensed electrician
Room volume	About 176 to 423 cubic feet
Stone capacity	Minimum about 44 pounds of stones one box of Harvia AC3000
Construction	Stainless steel housing with stainless steel elements
Installation	Wall mount with option to integrate into a bench surround
Dimensions	About 16.9 inches wide by 10.15 inches deep by 27.5 inches high
Product weight	About 36.5 pounds without stones
Maximum sauna temperature	About 194 degrees Fahrenheit
Controls	Built in illuminated mechanical controls
Certifications	CE and EAC listings
Country of origin	Finland
Warranty	Two year full consumer warranty plus five year service warranty

What Is Included

• Harvia The Wall SWS80 eight kilowatt stainless steel sauna heater



• Wall mounting hardware



• Installation and operation manual



• Two year full consumer warranty and five year service warranty

Required and Recommended Accessories

• About forty four pounds of Harvia sauna stones one box of AC3000 stones sold separately



• Many owners add a second box of stones to hand select ideal shapes for airflow and appearance



• Optional Harvia safety rails guard panels and sauna lighting packages sold separately

Installation Notes

• For indoor traditional saunas built to Harvia clearance and ventilation guidelines



• Requires dedicated 240 volt single phase supply sized and installed by a licensed electrician



• All wiring and final connections must follow local electrical codes and the Harvia manual



• Mount the heater at the height specified in the installation guide and maintain required clearances to wood surfaces



• Load stones so air can move freely between them and do not pack stones against the temperature sensor
