HUUM UKU Wi Fi Glass Black Sauna Control

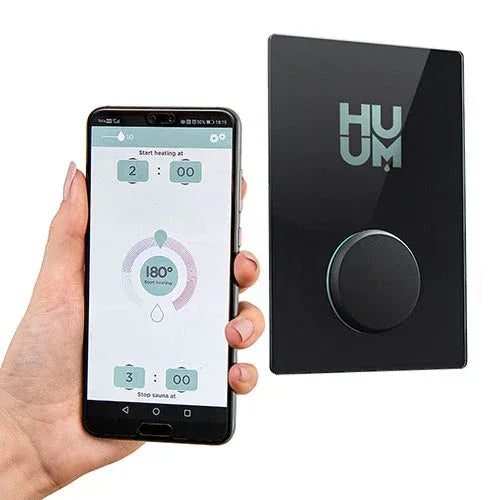

The HUUM UKU Wi Fi Glass sauna control adds a premium black glass front to the proven UKU platform. The sleek panel can be surface mounted or recessed into the wall for a clean built in look. Use the glass display for daily control or connect the system to your Wi Fi network and start the sauna with the HUUM mobile app so it is hot when you arrive. Safety functions including a door sensor temperature sensor overheat protection and child lock support confident everyday use.

Key Features

• Elegant black glass digital wall display for a high end designer look



• Display can be surface mounted or recessed into the wall



• Built in Wi Fi interface for the HUUM mobile app



• Start and monitor your sauna locally or from your phone



• Notification when the sauna reaches the set temperature



• Controls on off time temperature and delayed start from one control



• Supports HUUM electric sauna heaters up to eighteen kilowatts. Larger heaters require a HUUM UKU extension box



• Adjustable temperature range from about one hundred twenty two to two hundred thirty degrees Fahrenheit



• Delayed start timer can be set up to forty eight hours in advance



• Display can be installed inside or outside the sauna room



• Optional smart heating mode for more even cabin temperatures



• Shows both set temperature and current room temperature on the screen



• Included temperature sensor and door sensor help stabilize heat and add safety



• Remote main control module connects to lights and ventilation for one touch control



• Overheat protection with automatic shutoff



• Child safety lock to prevent unwanted changes to settings



• Multiple language options plus support for unlimited app users

Specifications

Brand	HUUM
Series	UKU Wi Fi
Model	H2004032
Front panel finish	Black glass
Controller type	Designer Wi Fi enabled sauna control
Compatible heaters	HUUM electric heaters up to eighteen kilowatts. Use HUUM UKU extension box for larger models
Temperature range	Approximate range one hundred twenty two to two hundred thirty degrees Fahrenheit
Maximum time setting	Up to eighteen hours
Delayed start	Up to forty eight hours in advance
Installation location	Inside or outside sauna room
Mounting	Surface or recessed wall mounting for the display plus remote main module
Display dimensions	About 3.54 inches wide by 0.86 inches deep by 5.12 inches high
System weight	About 3.35 pounds
Electrical supply	240 volt single phase control circuit forty amp maximum
Connectivity	Wi Fi network required for app control
Certifications	CE SGS IPX4
Safety features	Door sensor temperature sensor overheat protection child lock automatic shutoff
Warranty	Limited five year HUUM warranty

What Is Included

• UKU Wi Fi Glass black control display panel



• Main UKU Wi Fi control module



• Temperature sensor



• Door sensor



• Display panel cable about 9.84 feet



• Temperature sensor cable about 16.4 feet



• Door sensor cable about 16.4 feet



• Installation and operation manual

Installation Notes

• Sauna heater is sold separately



• For larger HUUM heaters you must add a HUUM UKU extension box



• Requires a stable Wi Fi network for mobile app control



• All high voltage wiring must be completed by a licensed electrician and installed per local code and HUUM instructions
